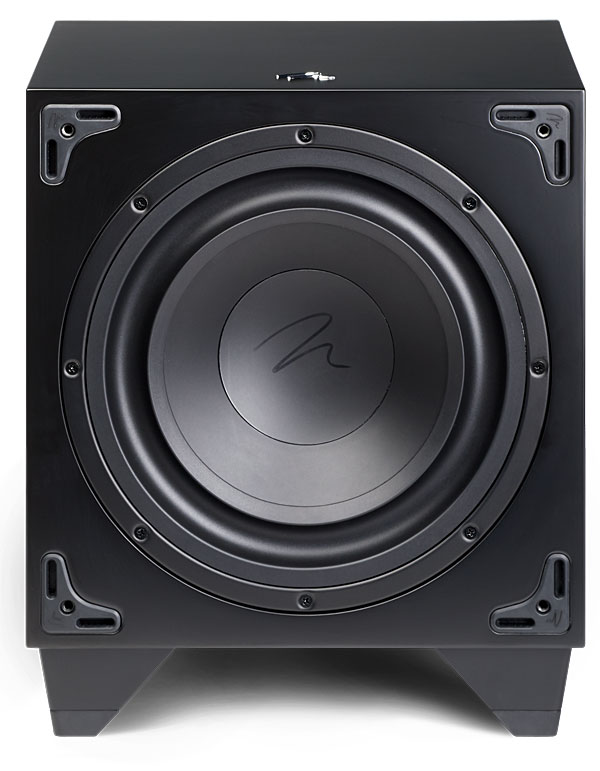

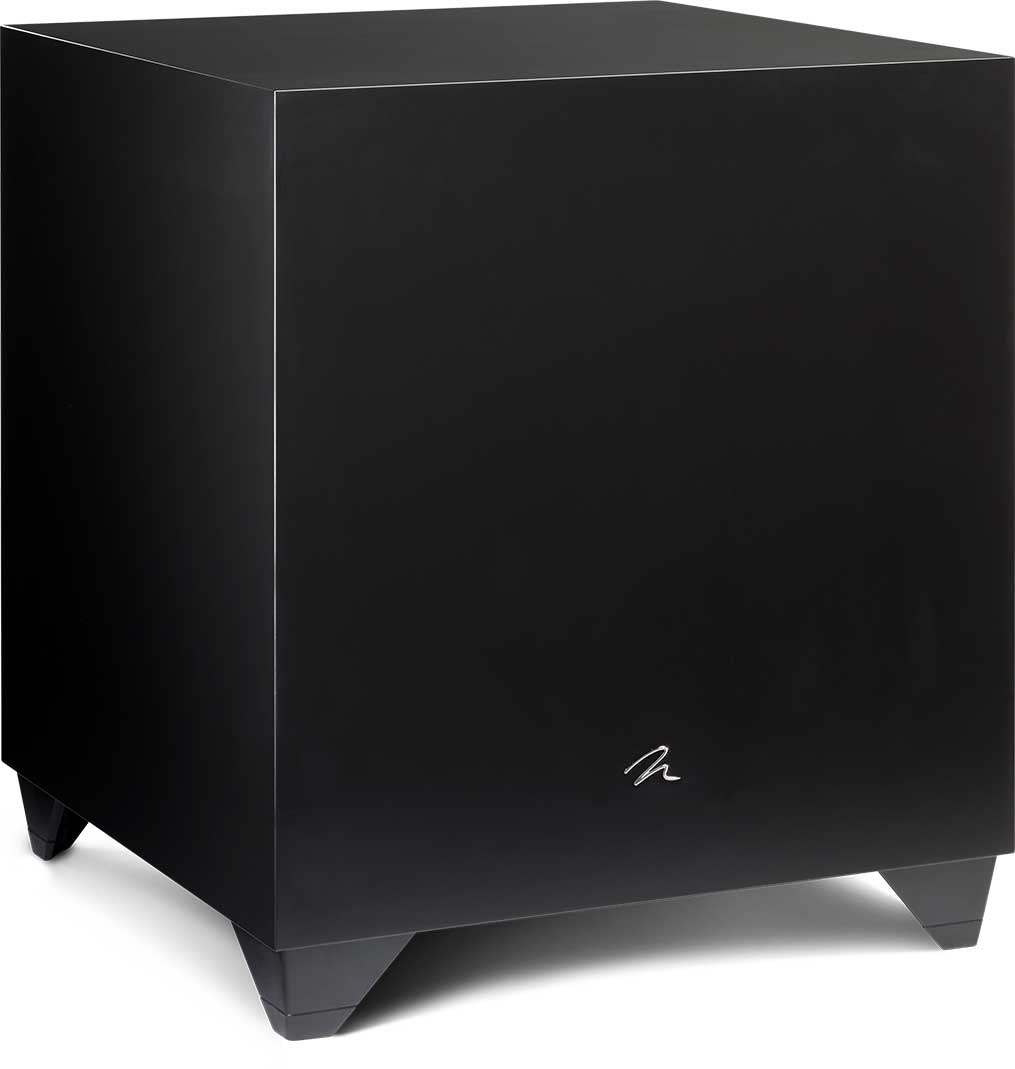

Martin Logan Dynamo 800X - 10 Zoll / 600 Watt

Frequency Response

24–200 Hz ±3 dB. Anechoic in LFE mode.

Impedance

RCA: 8,300 Ohms Speaker Level: 2,000 Ohms (red to black)

Low Frequency Transducer

10” (25.4cm) high-excursion, inverted surround, polypropylene cone in a stamped steel basket with extended throw driver assembly; sealed non- resonant cabinet design.

Amplifier

300 Watts (600 peak)

Software

Sub Control App: iOS and Android
Anthem Room Correction: iOS, Android, and PC

Room Correction

Anthem Room Correction (ARC)

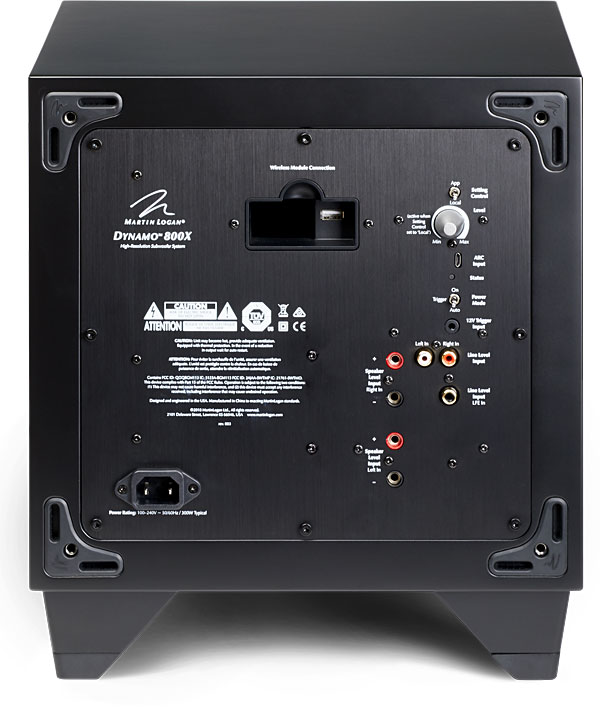

Controls (Backplate)

Level: Min–Max
Setting Control: Local, App
Power Mode: On, Trigger, Auto

Controls (via Bluetooth)

Level: -40 to 12dB
Low-Pass Filter (Frequency): 35–120Hz
Low-Pass Filter (Order): Bypass, Third, Fourth
Phase: 0–180° (1° Increments)
Phase (Polarity): Normal, Inverted
Preset Listening Modes: Music, Night, Movie
20–30Hz Level: ±10dB
Anthem Room Correction (ARC): On, Off
Tone Sweep (20–120Hz): On, Off, Pause (Frequency)

Inputs (Audio)

Line Level: Left, Right, and LFE
Speaker Level: Left and Right via banana jacks

Inputs (Audio, Wireless)

SWT-X Receiver & Transmitter (sold separately)

Inputs (Other)

USB: Micro USB (for ARC/Firmware Update)
Trigger: 3.5mm, 5–24 DC
